Frequently Asked Questions (FAQs) about Parker S5A Solenoid Valves
What are Parker S5A solenoid valves designed for in refrigeration systems?

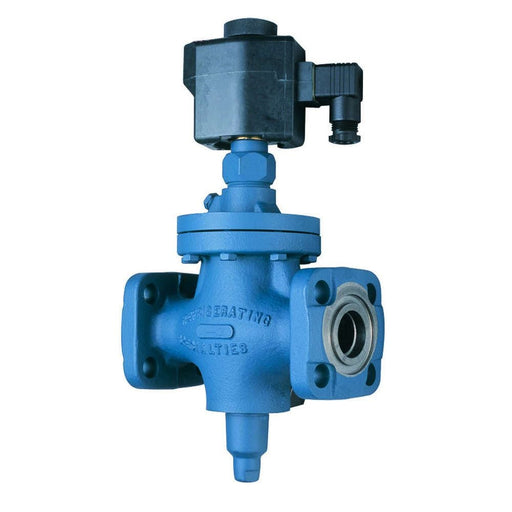

Parker S5A solenoid valves are heavy-duty pilot operated valves suitable for ammonia, R-12, R-22, R-502, and other common refrigerants. The S5A is specifically recommended for use in refrigerant liquid or suction lines and is NOT recommended for hot gas lines or applications where high pressure drops exist when the valve is open, making it ideal for liquid feed control and suction line applications.
What sizes and connection options are available for Parker S5A valves?
Parker S5A valves are available in port sizes from 32mm to 75mm (1-1/4" to 3") with multiple connection types including FPT (Female Pipe Thread), Socket Weld, Weld Neck, and ODS (solder over copper tubing) connections. The valve features a removable flanged design for easy servicing and can be easily removed from between flanges for maintenance without system evacuation.
What are the pressure specifications for Parker S5A solenoid valves?
Parker S5A valves have a Maximum Operating Pressure Differential (MOPD) of 20.7 bar (300 PSIG) and a maximum rated pressure (MRP) of 27.6 bar (400 PSIG). The valve requires only a minimum pressure drop of 0.07 bar (1.0 PSI) to hold the valve wide open, making it suitable for applications where minimal pressure loss is critical.
How does the Parker S5A pilot operated mechanism work?
The S5A operates through pilot control where energizing the solenoid coil lifts the plunger-needle off its seat, allowing refrigerant trapped above the piston-main valve assembly to flow through the pilot port to the downstream side. This reduces pressure above the piston, while higher inlet pressure forces the piston-main valve assembly upward to open the valve. When de-energized, the needle seats, pressure equalizes, and the weight of the piston causes it to drop closed.
What makes the S5A different from other Parker solenoid valve models like the S4A?
The S5A features a replaceable piston plug assembly and is specifically designed for liquid and suction line applications where minimal pressure drop is important. Unlike the S4A which can handle hot gas applications, the S5A is not recommended for hot gas lines due to its design optimization for lower pressure differential applications and its reliance on weight-assisted closing rather than spring-closing operation.
What electrical specifications and coil options are available for S5A valves?
Parker S5A valves feature molded Class "B" coil construction with standard voltages including 120/60Hz, 208/60Hz, 240/60Hz, 440/60Hz, 115/50Hz, and 230/50Hz. The coils consume 33 watts or less during normal operation, are designed to operate with line voltage from 85% to 110% of rated voltage, and the standard coil housing meets NEMA 3R and NEMA 4 rain-tight requirements with superior salt spray resistance.
How does the manual opening stem work on the S5A valve?
The manual opening stem allows valve operation without energizing the solenoid coil, useful for servicing or during power failures. To access the stem, remove the seal cap from the bottom of the valve (cautiously, as refrigerant may be trapped). Manual opening is accomplished by turning the stem CLOCKWISE until only the flats protrude from the packing nut - note this is opposite to the S4A valve direction.
What installation requirements are critical for proper S5A operation?
S5A valves must be mounted horizontally with the solenoid coil at the top and installed with the arrow on the valve body pointing in the flow direction. The valve should be positioned near the expansion valve inlet in liquid line applications. Installing a close-coupled companion strainer upstream is advisable for protection against dirt and debris that could interfere with the pilot operation.
What comprehensive repair kits are available for S5A valve maintenance?
Parker Refrigerating Specialties offers extensive repair kits for S5A valves including complete Solenoid Repair Kits (202073-202077), Piston Plug Kits (201200, 201140, 201139, 201117, 201121), Opening Stem Kits (201125, 201133, 201118, 201216), and various gasket kits. The replaceable piston plug assembly is a key serviceable feature that extends valve life and reduces maintenance costs compared to non-serviceable designs.
How do you troubleshoot common S5A valve problems?
Common issues include failure to open (check coil voltage, line voltage, control circuits, or excessive pressure differential over 20.7 bar), failure to close (inspect for dirt on pilot seat or main valve seat, check manual opening stem position, verify proper control circuit operation), and overheating (verify proper line voltage and coil specifications). The valve can only stop flow in the direction shown by the arrow on the body and may require a downstream check valve in systems with pressure reversal.
